Simplex 50/125 MU Connector 2.0mm Optical Fiber Pigtail

Single Strand 2 Meter ST Single-Mode OS2 1 Meter Pigtail Fiber Optic

Basic Information:

MU fiber optic pigtail multimode simplex pigtail mm 50/125 2.0mm

MU fiber optic pigtail multimode available for multimode and single-mode.Mu Multimode fiber optic pigtail suitable with mu type connectors with 2.0mm cables. Housing and boot are made from UL-rated material, The MU-J style pigtail is the same as the regular MU pigtail, but without the outer housing, and with a very narrow, short boot for 900-micron fiber, ideal for back panel solutions and high-density situations.

MU Pigtails are available in pre-assembled (one-piece) versions or unassembled kits

Features And Benefits of MU Pigtails:

High precision alignment, One-piece construction
Tunable zirconia pigtail ferrule
Corrosion-resistant body
UL-Rated plastic housing and boot
Low insertion loss & back reflection
FC, SC, LC, MU, ST, MT-RJ, etc connector
Free mu sm fiber pigtail sample in stock
The price is favorable and can fluctuate with the quantity

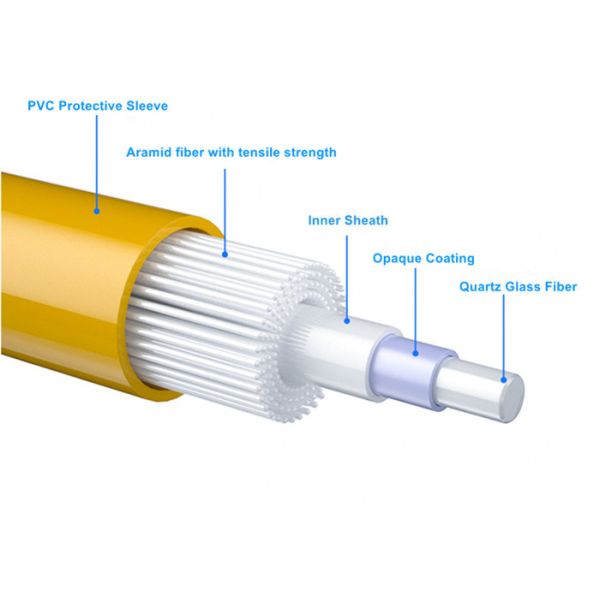

Simplex 50/125 MU Connector 2.0mm Optical Fiber Pigtail

Applications of MUSingle Mode Pigtails:

Data processing networks
Telecommunication network
Wide area networks
Premise installations
Industrial, medical & military

Simplex 50/125 MU Connector 2.0mm Optical Fiber Pigtail

Specification &Technology Parameters:

Item	SM (Single-Mode)			MM (Multimode)
Fiber Cable Type	G625D/G655/G6571A/G657A2			OM1	OM2/OM3/OM4
Fiber Diameter (um)	9/125			62.5/125	50/125
IL(dB)	≤0.3			≤0.1
Cable Type	Simplex, Duplex, Fan-Out
Connector Type	LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc.
Cable OD (um)	0.9/1.6/1.8/2.0/2.4/2.8/3.0
End-face Type	PC	UPC	APC	UPC	UPC
Retun Loss(dB)	>45	>50	>60	/
Insert-pull Test (dB)	<0.2		<0.3	<0.15
Interchangeability (dB)	<0.1		<0.15	<0.1
Mating Times	>1000
Anti-tensile Force (N)	>70
Temperature Range (℃)	-40~+80

MU Single Pigtails Specification:

Parameter		Unit	Index
End-Face Type			PC	UPC	APC
IL		dB	SM: ≤0.3；MM ≤0.1
Repeatability		dB	≤0.1
Interchangeability		dB	≤0.2
RL	SM	dB	≥45	≥50	≥60
	MM	dB	≥36(Exclusive APC Connector )
Mating Times			＞1000
Operating Temperature		℃	-40~ +80

Ordering Information:

OFC	-X	-XX	-XX	-XX	-X	-X
	S: Simplex D: Duplex	MU:MU/UPC	MU:MU/UPC	09:0.9mm 20:2.0mm 30:3.0mm	0:G652D 1:G657A 2:50/125 3:62.5/125 4:others	0.5:0.5m 1.0:1.5m 10:10.0m
	Fiber Mode	Connector Type	Connector Type	Cable Diameter	Flange Type	Fiber Length
